Multipoll
Multiwall Polycarbonate
Domer Multipoll
is a family of multiwall polycarbonate sheets with a cellular structure that provides insulating spaces creating thermal insulation while allowing light penetration. Domer offers a wide range of structures, thicknesses, colors, and finishing to adapt to every application.
Domer Multipoll Polycarbonate sheet is co-extruded with UV protection surface on one or both sides, guaranteeing resistance to aging against atmospheric agents and harmful UV rays and providing an excellent weather performance.
Applications:
- Skylights and sidelights
- Translucent cladding
- Interior decoration
- Polycarbonate greenhouses
- Illuminated signage
- Covered walkways
Heat Insulation
Based on the different load and thermal management requirements, Domer manufactures polycarbonate multiwall reinforced and stable structures to meet the various options of clients’ needs.
We provide specific solar control performances reducing the solar heat gain while securing high levels of healthy natural light passing into the building.
Domer Multipoll structured multiwall polycarbonate sheets are lightweight compared to solid polycarbonate sheets or glass, offering far better thermal insulation in a single panel.
Perfect to pass the light while keeping the heat out in summer; likewise, pass the light into the living space while preserving the heat within the building in winter.
Product Benefits:
- Lighter weight than glass and solid polycarbonate sheets
- Excellent impact strength
- High light transmission and variety of tints
- Flame retardancy
- Excellent print quality and ink adhesion
- Weatherability: Co-extruded UV layer on one or both sides
| Product Name | Description |
|---|---|
| Domer Multipoll | Multiwall polycarbonate panel (Find below the product codes) |
| Domer Multipoll A | Fire retardant multiwall polycarbonate panels conforming to American Standard E84 Class A |
| Domer Multipoll EN | Fire retardant multiwall polycarbonate panels conforming to European Standard EN13501-1 Class B s1 d0 |
| Thickness | Length | Width |
|---|---|---|
| 4.0 - 38mm | No Limit | โค2100mm |
*customized sizes are available subject to minimum order quantity
| Type | Color |
|---|---|
| Opaque | white, navy blue, sky blue, dark green, mint green, yellow, light grey, dark grey, red, brick red, orange |
| Translucent | transparent clear, opal, bluewish, greenish, yellowish, greyish, reddish, orange |
| Finishing | |
|---|---|
| Solar Controlled | Colors can be customized subject to minimum order quantity |
| Diffused | Colors can be customized subject to minimum order quantity |
*Colors and Finishes can be customized subject to minimum order quantity

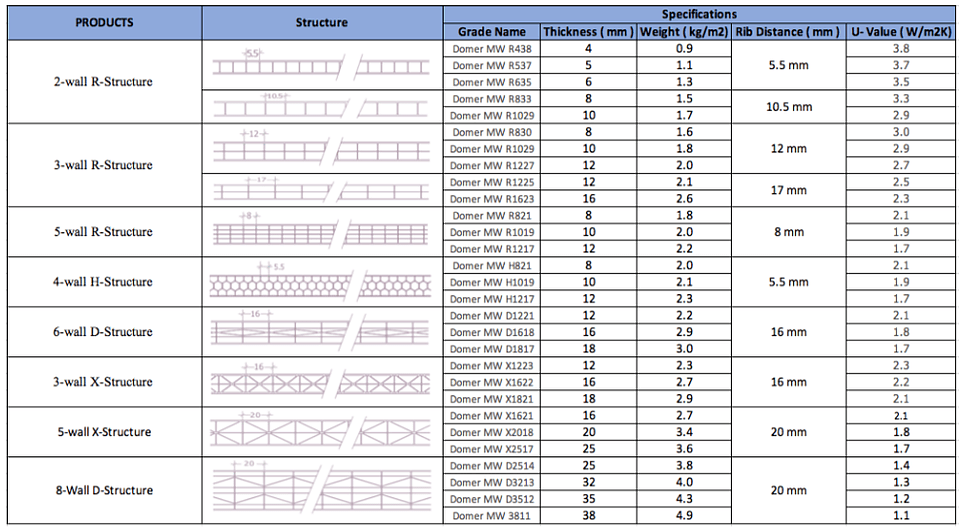

Duratherm Structures
| Property | Test Method | Conditions | Units | Value |
|---|---|---|---|---|
| Physical | ||||
| Densitiy | D-792 | g/cm3 | 1.2 | |
| Water Absorption | D-570 | 24 hr. @ 23ยฐC | % | 0.15 |
| Mechanical | ||||
| Tensile Strength at break | D-638 | 10 mm/min | Mpa | 65 |
| Elongation at break | D-638 | 10 mm/min | % | >80 |
| Tensile Modulus of Elasticity | D-638 | 1 mm/min | Mpa | 2300 |
| Flexural Modulus | D-790 | 1.3 mm/min | Mpa | 2350 |
| Rockwell Hardness | D-785 | R scale | 125 |
| Property | Test Method | Conditions | Units | Value |
|---|---|---|---|---|
| Thermal | ||||
| Long Term Service Temperature | ยฐC | |||
| Short Term Service Temperature | ยฐC | |||
| Coefficient of Linear Expansion | D-696 | mm/mยฐC | 0.065 | |
| Thermal Conductivity | C-177 | W/mK | 0.21 |
| Property | Test Method | Conditions | Units | Value |
|---|---|---|---|---|
| Optical | ||||
| Haze | D-1003 | Clear Sheet | % | <0.5 |
| Light Transmission | D-1003 | Clear Sheet | % | 90% |
| Refractive Index | D-542 | Clear Sheet | 1586 | |
| Yellowness Index | D-1925 | Clear Sheet | <1 |
browse what can be done using our products
Our diverse portfolio represents decades of experience backed by a passion for quality, outstanding client service, and the latest industry technologies.

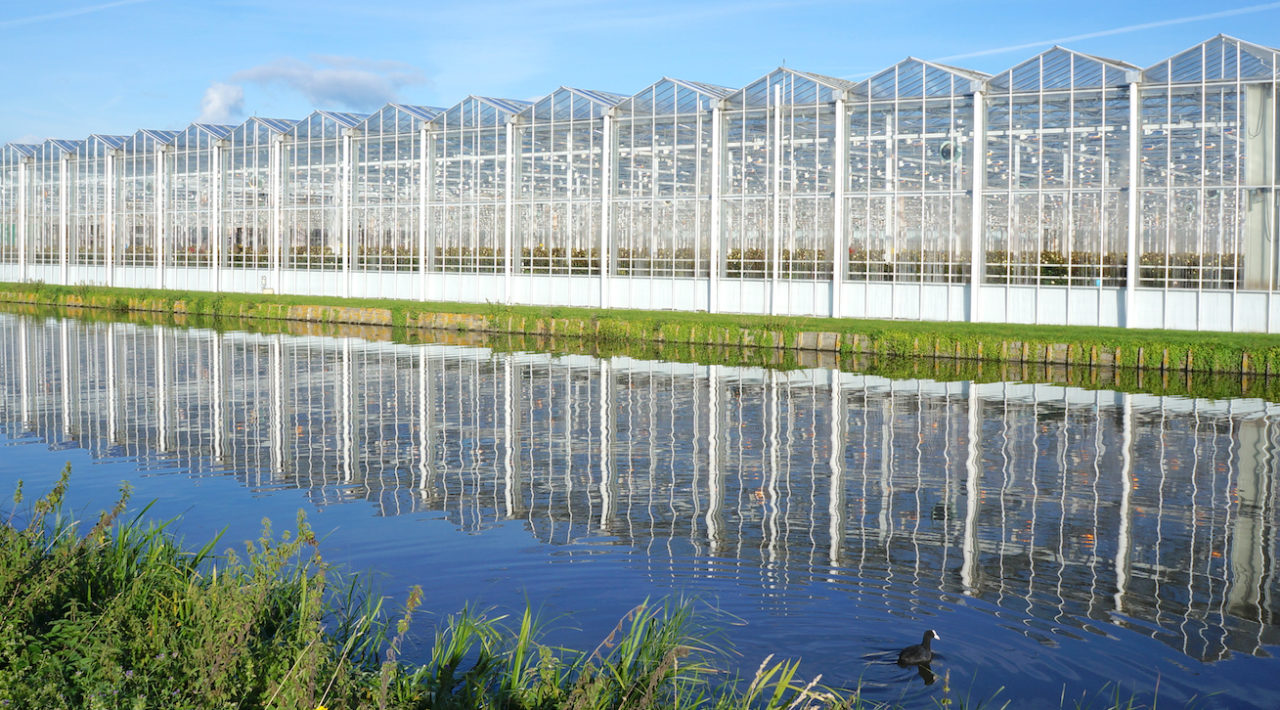

Green Houses
AREA
Wall, Roof
SUGGESTED PRODUCTS
Multipoll, Durapoll
MATERIAL
Polycarbonate
TYPE
Multiwall, Corrugated

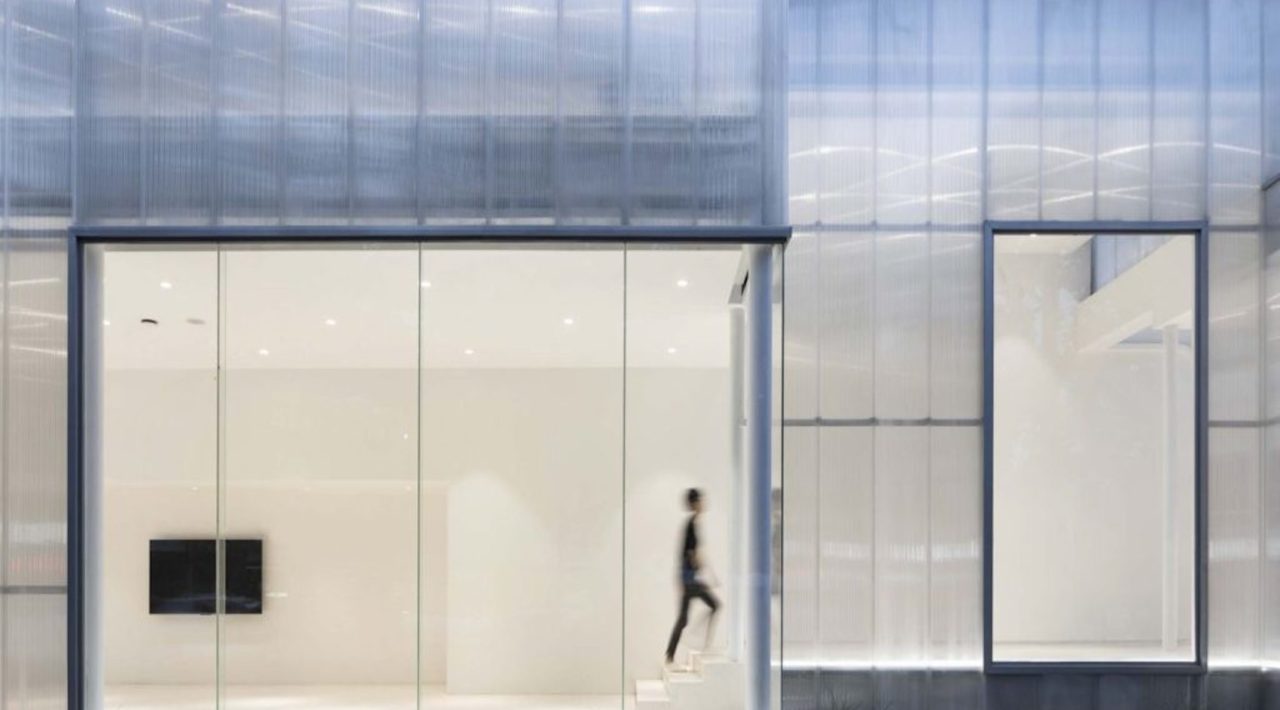

Glazed Wall
AREA
Wall
SUGGESTED PRODUCTS
ContiWall, ContiRoof, Durapoll PS, Multipoll, Vivid PS,
MATERIAL
Polycarbonate, GRP
TYPE
Multiwall, Solid, Corrugated

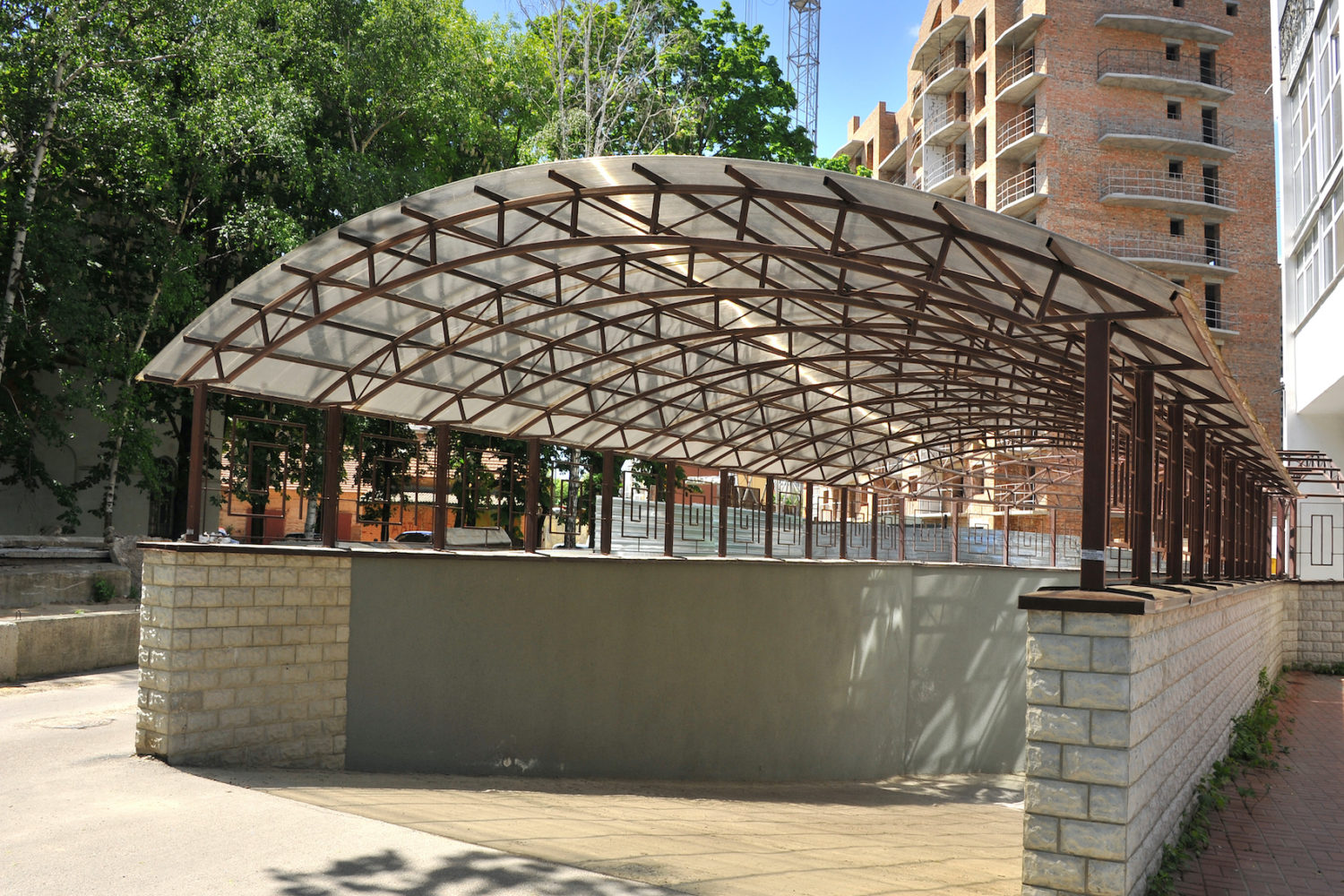

Walkways
AREA
Roof
SUGGESTED PRODUCT
Multipoll, ContiRoof, Durapoll GP, Vivaq PS
MATERIAL
Polycarbonate
Type
Solid, MultiWall, Standing Seam
quality products. inspired design.
unparalleled experience. exemplary service.
Common Questions & Answers
What are the main advantages of multiwall polycarbonates?
Multiwall polycarbonate panels have superior heat insulation properties and much lighter in weight in comparison with polycarbonate solid sheets.
What are the differences of Duratherm structures?
Domer Duratherm polycarbonate panels come in a wide range of structures, mainly defined as following:
- (R) rectangular walls
- (D) Diamond-shaped walls
- (H) Honeycomb walls
- (X) X-structured walls
The wide variety of structures available with Domer provide tens of options and combinations of specifications such as Light transmission, strength, heat insulation, and more.
Contact Domer for more information
Would multiwall polycarbonates lose color over time?
Domer Duratherm panels are co-extruded with premium quality UV resistant layer guaranteeing very long life expentancy without color fade or change.
Can we install polycarbonate multiwalls horizontally for siding?
Multiwall polycarbonates have hollow structures that should be installed vertically for outdoor applications, places with high-temperature differences, humid areas, and so on, to allow water to drain out.
However, in some interior dry applications, multiwall polycarbonates can be installed horizontally.
