Durapoll EM
Embossed Polycarbonate Sheets
Domer Durapoll EM

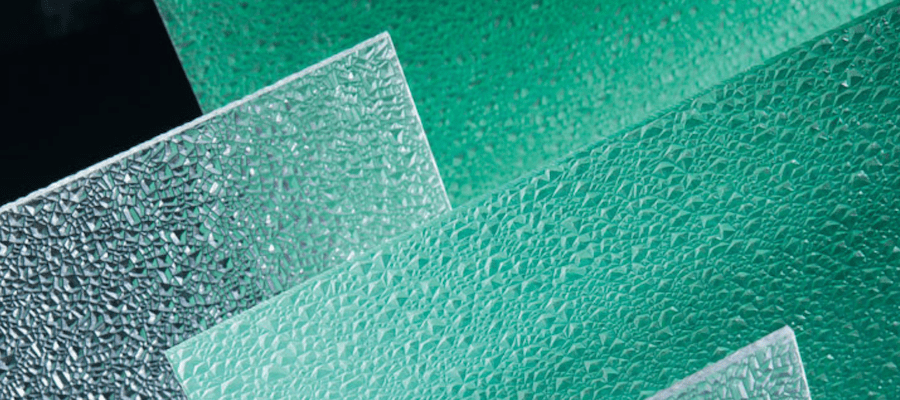

is polycarbonate embossed sheets with a texture on one surface side. The purpose of the texture is to provide light diffusion and prevent see-through vision as deemed necessary for a variety of applications. This texture is available in different patterns, enabling the diffusion of natural light along with ascertaining uniform dispersion of light over a large area.
Domer embossed sheet is protected by UV coated layer from weathering and yellowing allowing high long-term light transmission levels.
Applications:
- Architectural glazing
- Lighting component
- Partitions
- Shelters
- Interior decoration
- Industrial/commercial roofing
Textures and Finishes

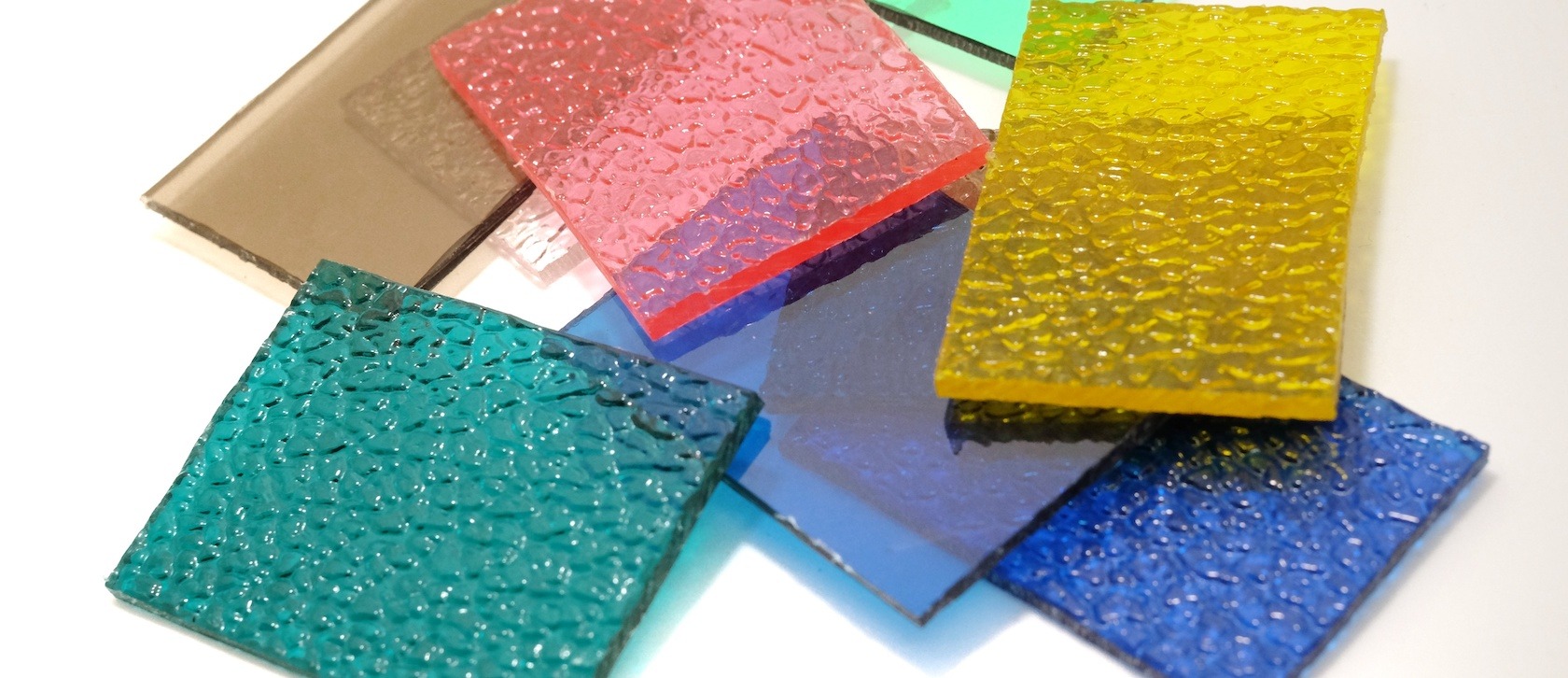

Domer Durapoll EM is available in a wide range of texture options, including raindrop, diamond, leather, and frosted finishes. In addition to their unique patterns, rich texture, range of colors and tints, low maintenance, and superb finish. Domer Durapoll EM sheet is ideal for many applications ranging from industrial and commercial roofing to interior designing, partitions, or shelters.
Embossed polycarbonate sheets can be used in domestic or industrial applications due to their excellent aesthetic appearance and polycarbonate’s superlative qualities. The embossed process diffuses the light and reduces light pollution creating a pleasant environment
Product Benefits:
- High natural light transmission
- High impact resistant
- Lightweight and easy to handle
- Beauty and user friendly
- Excellent acoustical insulation
- UV protected
| Product Name | Description |
|---|---|
| Domer Durapoll EM | Solid embossed polycarbonate sheets |
| Domer Durapoll EM A | Fire retardant solid embossed polycarbonate sheets conforming to American Standard E84 Class A |
| Domer Durapoll EM BS | Fire retardant solid embossed polycarbonate sheets conforming to British Standard BS476-7 Class 1 |
| Thickness | Length | Width |
|---|---|---|
| 0.8 - 3.0mm | No Limit | โค 2100mm |
| 3.0 - 20mm | No Limit | โค 2450mm |
*customized sizes are available subject to minimum order quantity
| Type | Color |
|---|---|
| Opaque | white, navy blue, sky blue, dark green, mint green, yellow, light grey, dark grey, red, brick red, orange |
| Translucent | transparent clear, opal, bluewish, greenish, yellowish, greyish, reddish, orange |

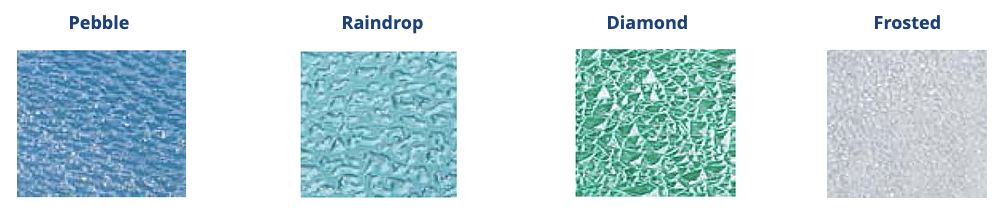

Embossing Types
*Colors and Finishes can be customized subject to minimum order quantity
| Property | Test Method | Conditions | Units | Value |
|---|---|---|---|---|
| Physical | ||||
| Densitiy | D-792 | g/cm3 | 1.2 | |
| Water Absorption | D-570 | 24 hr. @ 23ยฐC | % | 0.15 |
| Mechanical | ||||
| Tensile Strength at break | D-638 | 10 mm/min | Mpa | 65 |
| Elongation at break | D-638 | 10 mm/min | % | >80 |
| Tensile Modulus of Elasticity | D-638 | 1 mm/min | Mpa | 2300 |
| Flexural Modulus | D-790 | 1.3 mm/min | Mpa | 2350 |
| Rockwell Hardness | D-785 | R scale | 125 |
| Property | Test Method | Conditions | Units | Value |
|---|---|---|---|---|
| Thermal | ||||
| Long Term Service Temperature | ยฐC | |||
| Short Term Service Temperature | ยฐC | |||
| Coefficient of Linear Expansion | D-696 | mm/mยฐC | 0.065 | |
| Thermal Conductivity | C-177 | W/mK | 0.21 |
| Property | Test Method | Conditions | Units | Value |
|---|---|---|---|---|
| Optical | ||||
| Haze | D-1003 | Clear Sheet | % | <0.5 |
| Light Transmission | D-1003 | Clear Sheet | % | 90% |
| Refractive Index | D-542 | Clear Sheet | 1586 | |
| Yellowness Index | D-1925 | Clear Sheet | <1 |
browse our projects below
& learn more work we has done.
Our diverse portfolio represents decades of construction experience backed by a passion for quality, outstanding client service and the latest industry technologies.
Facade
AREA
Wall
SUGGESTED PRODUCTS
Contiwall, Contiroof, Multipoll, Vivaq, Vivid
MATERIAL
Polycarbonate, GRP
TYPE
Multiwall, Corrugated

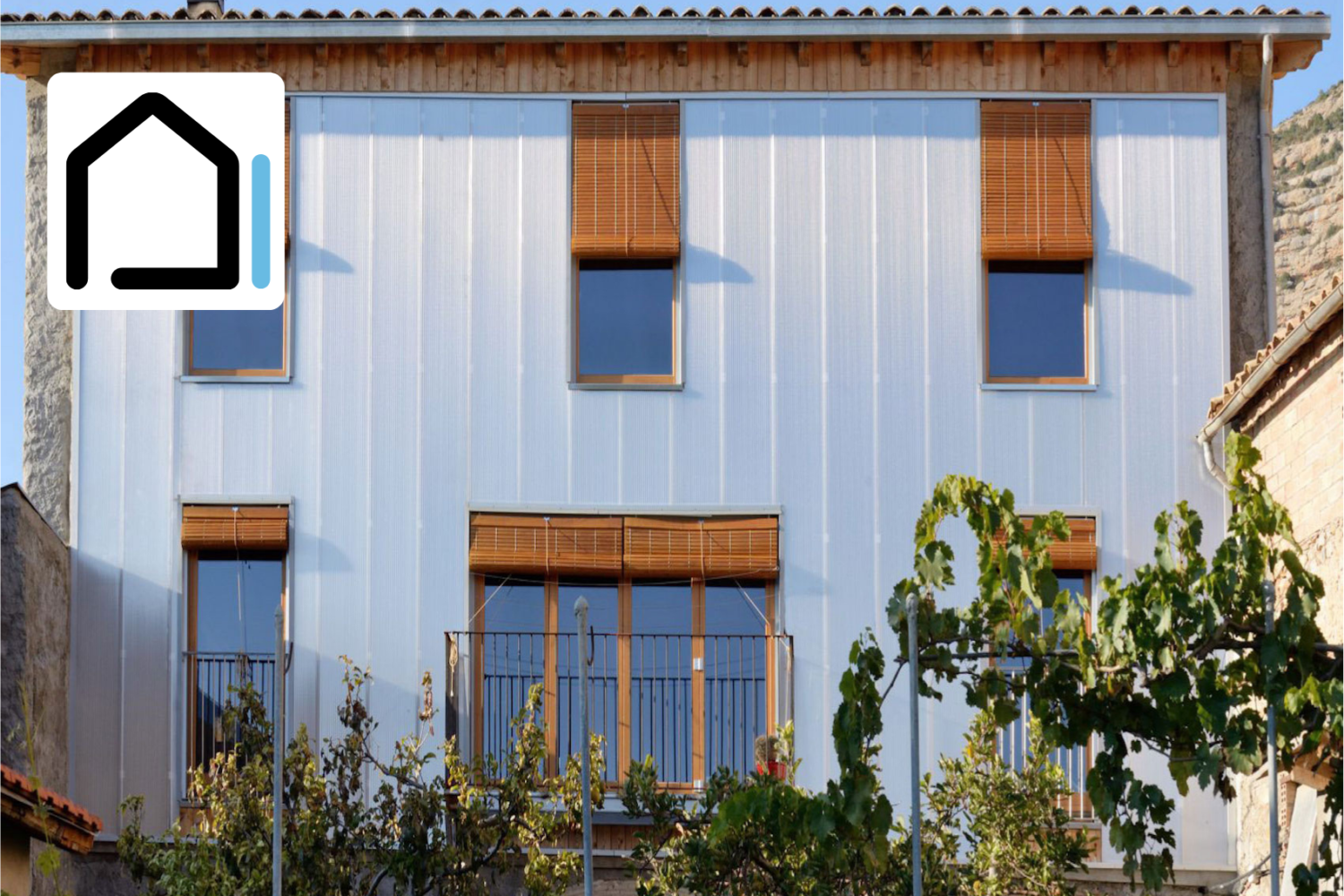

Wall Cladding
AREA
Wall
SUGGESTED PRODUCT
Contiwall, Contiroof, Multipoll, Vivid
MATERIAL
Polycarbonate, GRP
TYPE
MultiWall, Solid, Corrugated

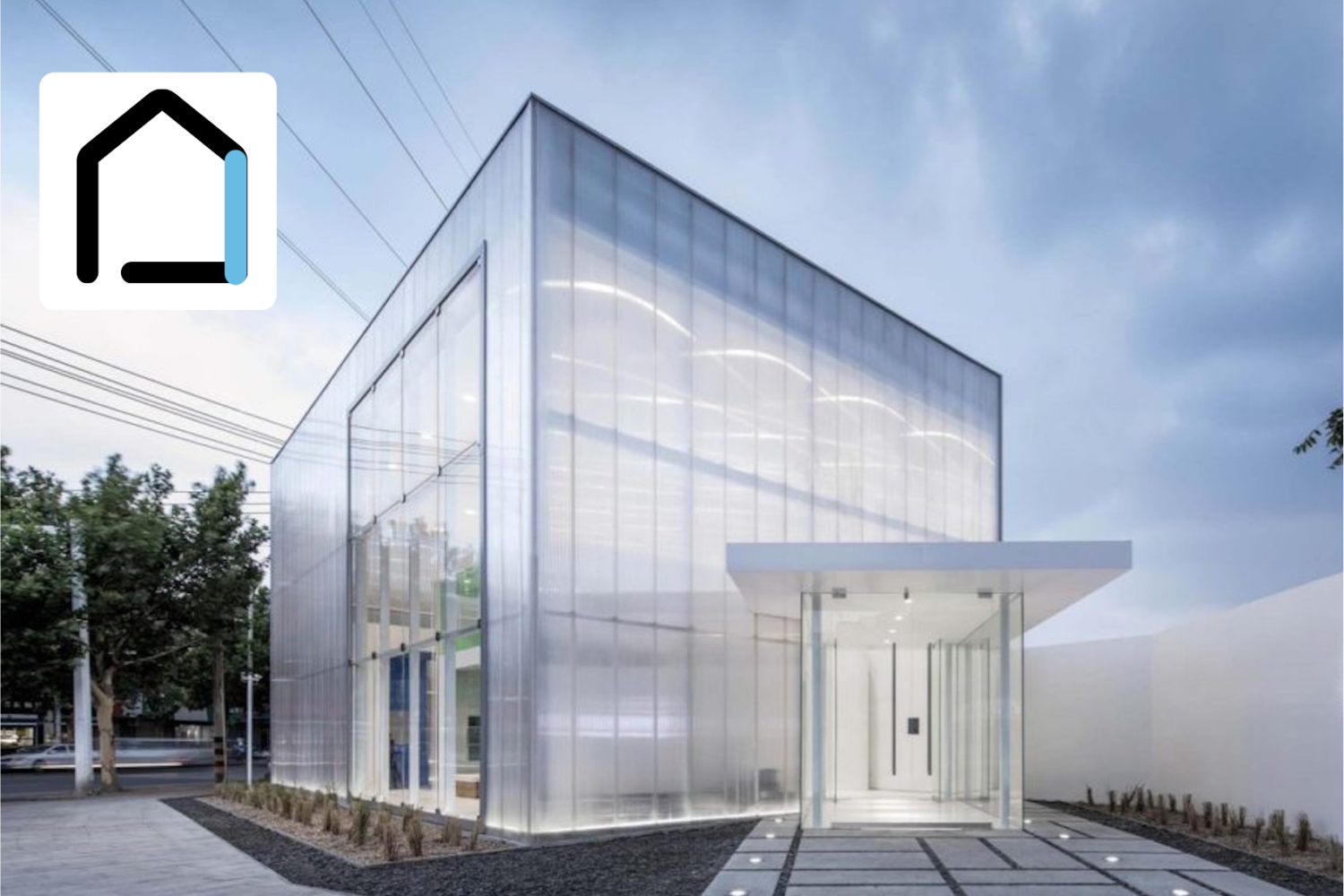

Glazed Wall
AREA
Wall
SUGGESTED PRODUCTS
ContiWall, ContiRoof, Durapoll PS, Multipoll, Vivid PS,
MATERIAL
Polycarbonate, GRP
TYPE
Multiwall, Solid, Corrugated
quality products. inspired design.
unparalleled experience. exemplary service.
Common Questions & Answers
Will embossed polycarbonate fade color or lose light transmission over time?
Domer Durapoll EM is co-extruded with the highest quality UV protection layer, preserving the light transmission, color, and increasing the life span of the product.
Does polycarbonate shatter?
Dome Durapoll would never shatter and can withstand heavy rainstorms, snow, sand storms, and heavy winds
What are the benefits of diffused daylight?
Durapoll EM would help in scattering the light passing through the polycarbonate to cover a wider field, hence cozier indoor atmosphere.
Why polycarbonate is better choice than glass?
Polycarbonate has way better impact resistance in comparison with glass, would never shatter, and is much lighter in weight.
