ContiVault SSCV
Skylight for Standing Seam Roof

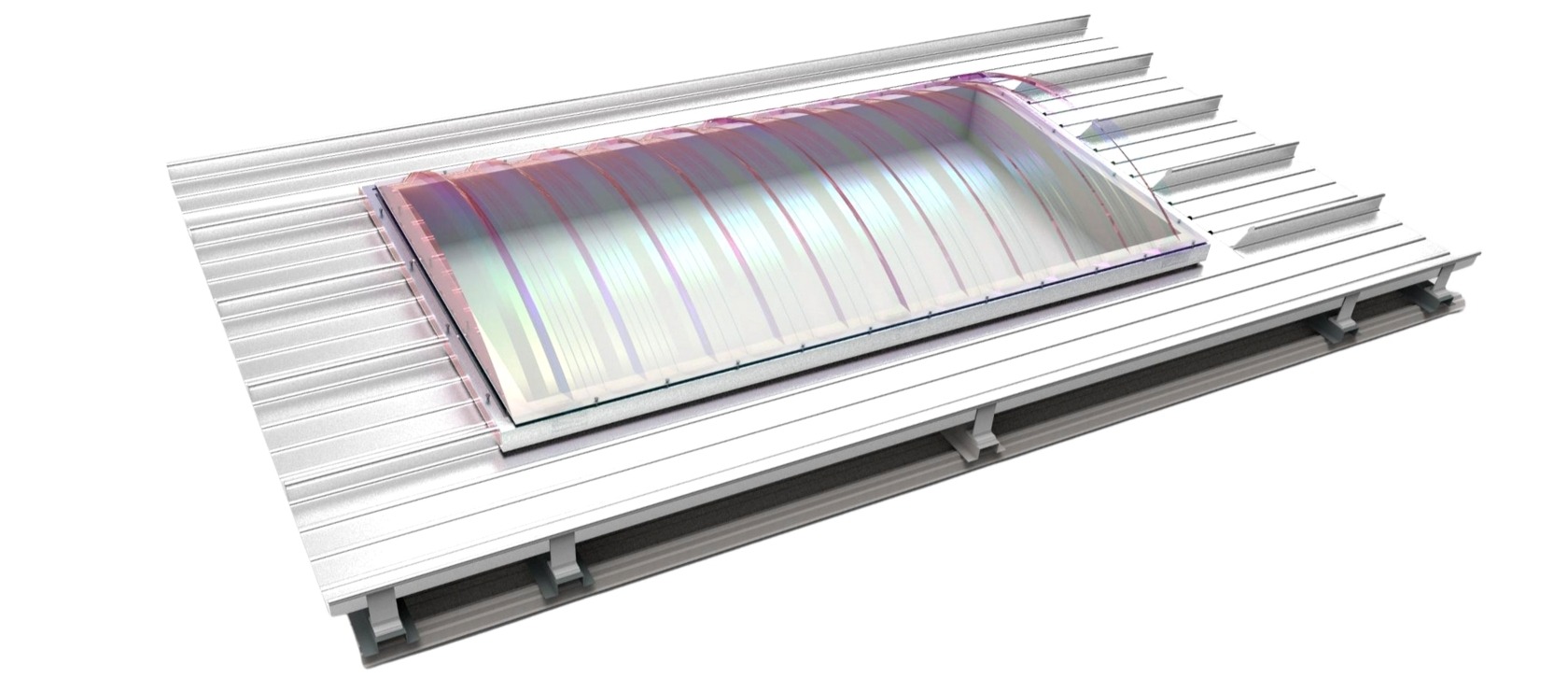

ContiVault SSCV
is a polycarbonate skylight solution designed specifically for standing seam roofing systems, where can be installed directly on the roof without the need of costly steel up-stands, providing excellent light transmission and heat insulation.
ContiVault SSCV is a watertight solution for unlimited running meters that is compatible and approved by the leading standing seam roof manufacturers.
Domer ContiVault SSCV is manufactured with a co-extruded UV protection layer that eliminates a minimum of 99% of harmful ultraviolet solar radiation, ensuring long-term durability and preserving its light transmission and properties over the years.
Applications:
- Rooflights
- Sports centers
- Warehouses
- Commercial Centres
- Airport Terminals
Water and Fire
Domer ContiVault SSCV is engineered to preserve the main purpose of standing seam roofs, providing a polycarbonate skylight system without any screw penetrating the roof covering obtaining natural light transmission into the building without any risk of air or water leakage.

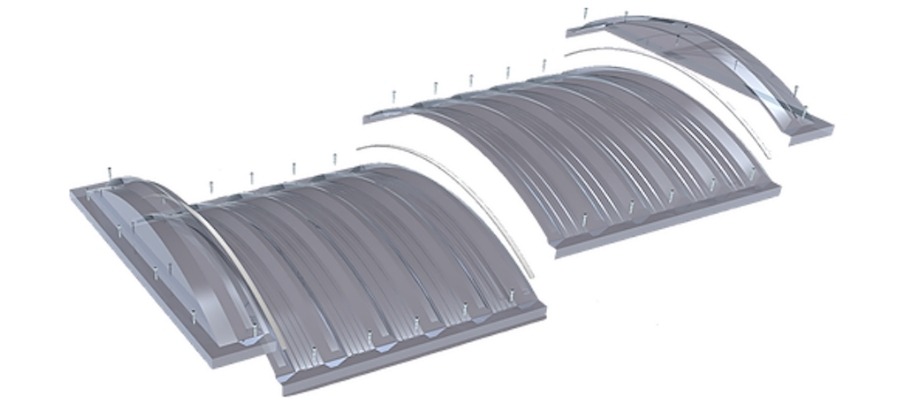

Its triple-layer provides high thermal insulation and its vaulted shape is designed to absorb the expanding movements of the metal roof.
Domer ContiVault SSCV Skylight achieves the highest fire classifications according to American Standard ASTM E84 Class A and British Standard BS 476-7 Class 1
Product Benefits:
- High light transmission
- Excellent thermal insulation
- Flame retardant
- Good weather and UV resistant
- Excellent durability
- Unlimited running meter
- Direct installation on standing seam
- Watertight design
| Product Name | Description |
|---|---|
| Domer ContiVault SSCV | ContiVault Skylight System suitable for Standing Seam Roofing |
| Domer ContiVault SSCV A | ContiVault Skylight System suitable for Standing Seam Roofing conforming to American Standard E84 Class A |
| Domer ContiVault SSCV BS | ContiVault Skylight System suitable for Standing Seam Roofing conforming to British Standard BS476-7 Class 1 |
*ContiVault layers can be customized to suit the project requirements of heat insulation, light transmission, light diffusion, color, fire retardancy, and size.
*Customization could be subject to a minimum order quantity, contact Domer for more info
| Thickness | Length | Width |
|---|---|---|
| 2.5mm* | No Limit | 1190mm - 1280mm (Suitable for Standing Seam Profiles range from 398mm - 425mm) |
*customized sizes, colors, diffusion levels, and designs are available subject to minimum order quantity
| Type | Color |
|---|---|
| Translucent | transparent clear, opal, bluewish, greenish, yellowish, greyish, reddish, orange |
| Finishing | |
|---|---|
| Diffused | Colors can be customized subject to minimum order quantity |
*Colors and Finishes can be customized subject to minimum order quantity
| Property | Test Method | Conditions | Units | Value |
|---|---|---|---|---|
| Physical | ||||
| Densitiy | D-792 | g/cm3 | 1.2 | |
| Water Absorption | D-570 | 24 hr. @ 23ยฐC | % | 0.15 |
| Mechanical | ||||
| Tensile Strength at break | D-638 | 10 mm/min | Mpa | 65 |
| Elongation at break | D-638 | 10 mm/min | % | >80 |
| Tensile Modulus of Elasticity | D-638 | 1 mm/min | Mpa | 2300 |
| Flexural Modulus | D-790 | 1.3 mm/min | Mpa | 2350 |
| Rockwell Hardness | D-785 | R scale | 125 |
| Property | Test Method | Conditions | Units | Value |
|---|---|---|---|---|
| Thermal | ||||
| Long Term Service Temperature | ยฐC | |||
| Short Term Service Temperature | ยฐC | |||
| Coefficient of Linear Expansion | D-696 | mm/mยฐC | 0.065 | |
| Thermal Conductivity | C-177 | W/mK | 0.21 | |
| System Thermal Insulation | W/m2K | 5.7 - 0.7 (subject to chosen combination) |
| Property | Test Method | Conditions | Units | Value |
|---|---|---|---|---|
| Optical | ||||
| Haze | D-1003 | Clear Sheet | % | <0.5 |
| Light Transmission | D-1003 | Clear Sheet | % | 90% |
| Refractive Index | D-542 | Clear Sheet | 1586 | |
| Yellowness Index | D-1925 | Clear Sheet | <1 |
browse what can be done using our products
Our diverse portfolio represents decades of experience backed by a passion for quality, outstanding client service, and the latest industry technologies.
Roof Skylight
Area
Roofing
Suggested Product
Vivid, ContiRoof, ContiVault, SkyDome
Material
Polycarbonate, GRP, Hybrid
Type
Corrugated, Structured MultiWall, Vaulted
Chemical Resistant GRP
AREA
Roof, Wall Cladding
SUGGESTED PRODUCT
Vivid CH, Vivaq CH
MATERIAL
GRP
TYPE
Flat, Corrugated, Panel
quality products. inspired design.
unparalleled experience. exemplary service.
Common Questions & Answers
What makes ContiVault SSCV suitable for standing seam roofs?
ContiVault SSCV skylight system can be fixed directly on the ribs of the aluminum, steel, or copper standing seam roofs, without installing the costly and problematic steel upstands.
ContiVault skylights are air, dust, and watertight and do not require additional waterproofing.
What is the light transmission and heat insulation of Domer ContiVault?
Domer ContiVault SSCV is a system that comes with a large variety of layer combinations that allow reaching the required heat insulation value while passing the cozy and healthy natural light into the building.
The most common combination of ContiVault layers allows 60% of healthy natural light transmission, eliminating 99.9% of the UV harmful radiation, andย providing heat insulation of 1.3 W/m2K
Contact Domer for more informationย
Why natural light is important for workspaces?
Natural healthy daylight is associated with mood enhancement, improved morale, and fatigue reduction. Hence increase in productivity.
Moreover, introducing daylight into your building while insulating the heat has direct environmental sustainability and economic positive impact.
What is the life expectancy of Domer ContiVault Skylights?
All of ContiVault SSCV layers are co-extruded with UV protection layer eliminating 99% of harmful ultra-violet rays, providing the skylight system very long effective life expectancy.
Our standard conditional warranty covers 10 years,
please contact Domer for more info
